• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 311875

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Radioplayer 235 - Philips Electrical Industries

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 450 x 200 x 310 mm / 17.7 x 7.9 x 12.2 inch

• Notes

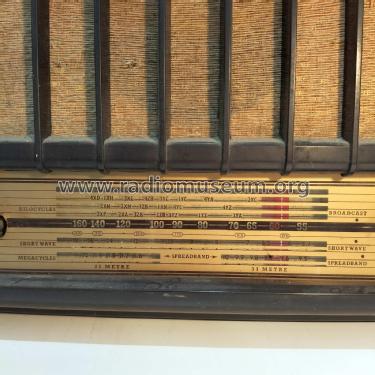

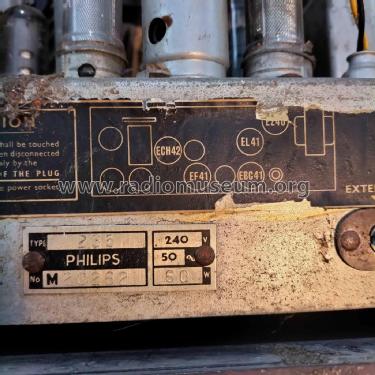

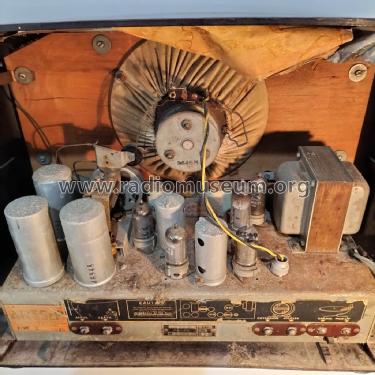

• Dual-wave table radio with New Zealand & some Australian broadcast stations marked on the dial. Has terminals for a external speaker & pick-up input. Has green New Zealand ARTS&P decal on the chassis.



• Net weight (2.2 lb = 1 kg)
• 16.1 lb (16 lb 1.6 oz) / 7.309 kg

• Price in first year of sale
• 36.50 NZ £

• Mentioned in
• -- Original prospect or advert (Press 5 March 1952 Page 5)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Mal Fields. See "Data change" for further contributors.
