• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 344396

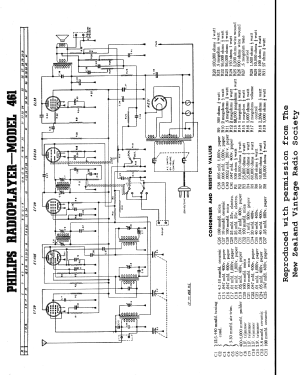

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF39 ECH35 EF39 EBC33 EL33 AZ31

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 inch = 21.6 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 461 - Philips Electrical Industries

• Shape
• Tablemodel, with any shape - general.

• Notes

• 6-Valve superhet with RF stage broadcast (MW) table receiver.

  8.5" Philips Ticonal PM speaker and connections for gramohone pickup and extension speaker.

  See also Philips 465 dual wave.

• Price in first year of sale
• 29.88 NZ £

• Mentioned in
• -- Original prospect or advert (Gisborne Herald 5 April 1948 Page 7)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
