- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 344340

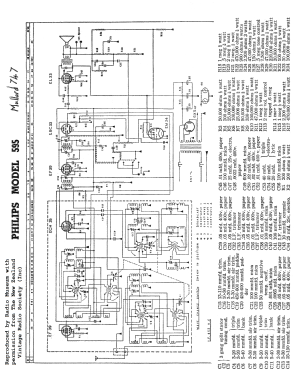

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 595 - Philips Electrical Industries
- Shape
- Tablemodel, with any shape - general.
- Notes
-
7-Valve (including magic eye) superhet with RF stage 5 band table receiver.
Polyband tuning with Inclinator dial.
Extension speaker terminals and radiogram switch.
See also Mullard 747 with same chassis and Philips 597 9 valve version.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
