• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340258

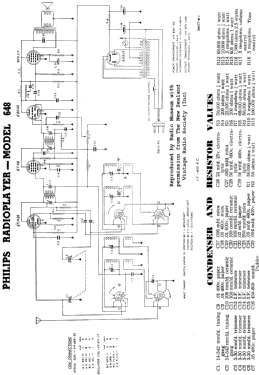

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH35 EF39 EBC33 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: 648 - Philips Electrical Industries

• Shape
• Tablemodel, with any shape - general.

• Notes

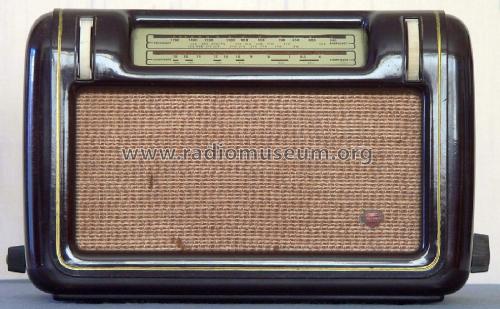

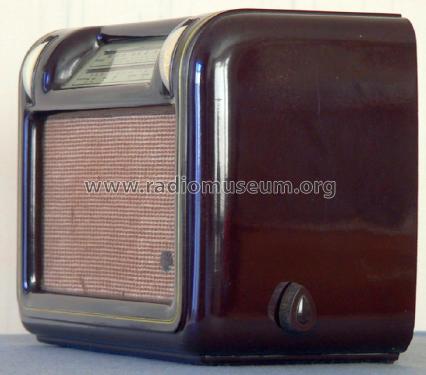

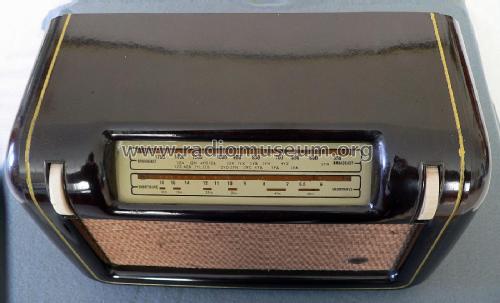

• 5-Valve superhet dual wave table model receiver.

  See also Mullard Model 537.

• Mentioned in
• The Golden Age of Radio in the Home 1986 (Page 60)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
