• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202180

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH81 EBF89 ECC83 EL84 EM81 EZ80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

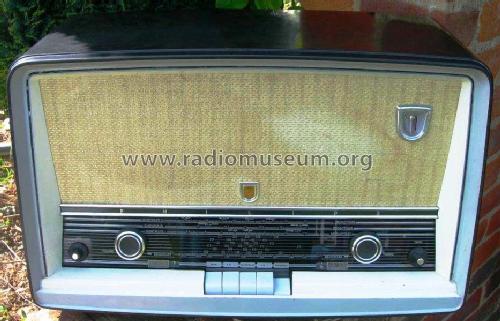

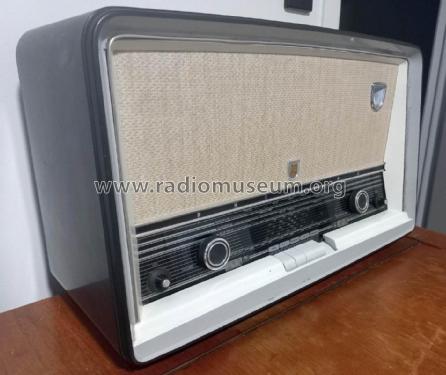

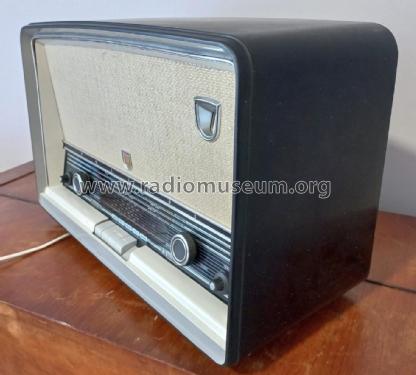

• Model: B5Z66A - Philips Electrical Industries

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 20.5 x 13.25 x 9 inch / 521 x 337 x 229 mm

• Notes

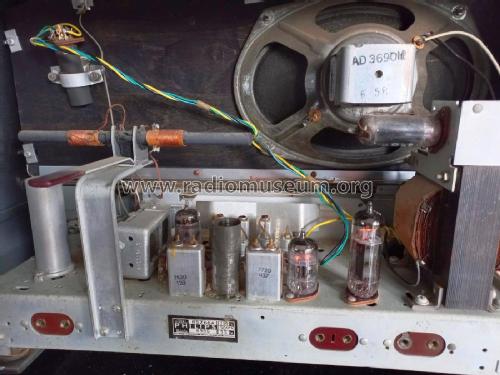

• Magic eye tuning indicator, revolving ferrite rod aerial.
  Broadcast 1600 - 550 kHz
  SW1 9.8MHz - 3.4MHz
  SW Bandspread 12 - 9.5 MHz
  SW2 26 - 13 MHz.
  The circuit is similar to the Dutch B5X75A model.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Howard Craven. See "Data change" for further contributors.
