• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159303

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 EBC81 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

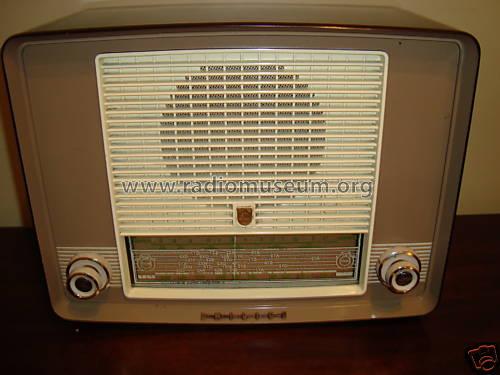

• Model: International BZ367A - Philips Electrical Industries

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 375 x 280 x 200 mm / 14.8 x 11 x 7.9 inch

• Notes

• Philips BZ367A;

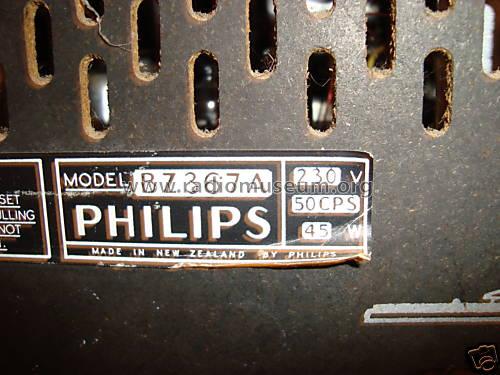

  Ext. antenna in, screw terminals for phono-in, ext. speaker, built-in ferrite rod antenna, 45 W power consumption, made in New Zealand by Philips.

  See also Philips Model 366A broadcast version.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
