- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339782
2nd example in my collection.
2nd example in my collection
2nd example in my collection
2nd example in my collection

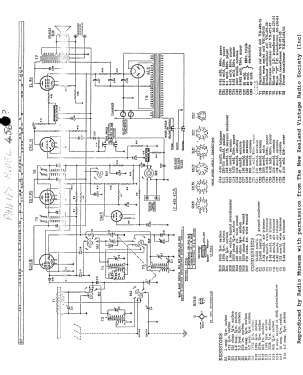

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: BZ456A - Philips Electrical Industries
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 19 x 12.75 x 8 inch / 483 x 324 x 203 mm
- Notes
-
6-Valve All Wave table model receiver.
Arbonite plastic woodgrain look cabinet.
Extension speaker and gramophone pickup connections.
See also Mullard Model 500.
- Price in first year of sale
- 38.88 NZ £
- Mentioned in
- -- Original prospect or advert (Press 13 April 1956 Page 16)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
