• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1961 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 344176

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• ECH81 EBF89 EBC81 EBC81 EM34 ECC83 ECC83 EL86 EL86 EL86 EL86 EF80 ECC83 ECC83 EZ81 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 inch = 25.4 cm

• Material
• Wooden case

• from Radiomuseum.org

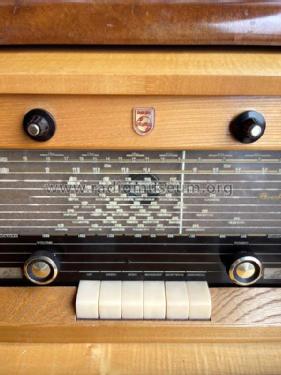

• Model: Festival Hall Mk V F9Z06A - Philips Electrical Industries

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 940 x 820 x 425 mm / 37 x 32.3 x 16.7 inch

• Notes

• 16-Valve (including magic eye) superhet 3 band stereo radiogram.

  10 inch Hi-Z speakers.

  The magic realism of stereo plus reverbeo.

  Automatic stereo record changer with diamond stylus.

  See also earlier model Festival Hall FZ876A.

• Price in first year of sale
• 225.00 GNS

• Mentioned in
• -- Original prospect or advert (Press 12 June 1962 Page 19)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
