• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339822

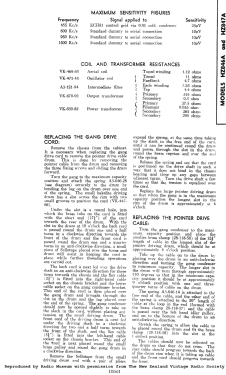

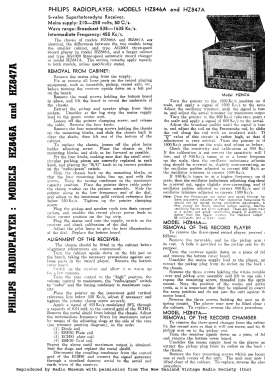

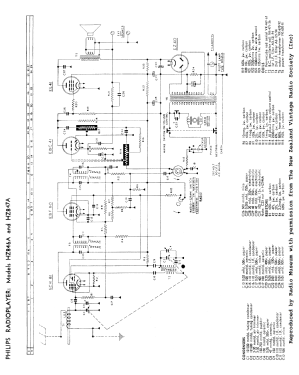

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH81 EBF80 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HZ846 - Philips Electrical Industries

• Shape
• Tablemodel, with any shape - general.

• Notes

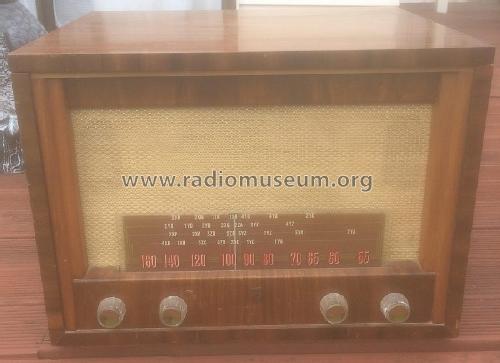

• 5-Valve superhet broadcast (MW) tabel model radiogram.

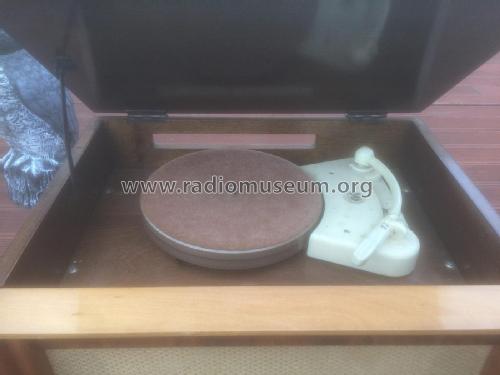

  Philips AG2001 3 speed record player.

  See also Philips Model HZ847 with record changer.

• Mentioned in
• -- Original prospect or advert (Press 14 June 1954 Page 11)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
