- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Philips Electrical Industries of New Zealand Ltd.; Wellington
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339823

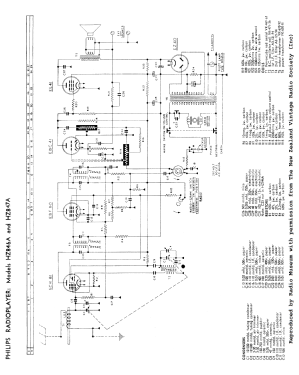

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HZ847 - Philips Electrical Industries
- Shape
- Tablemodel, with any shape - general.
- Notes
-
5-Valve superhet broadcast (MW) tabel model radiogram.
Philips AG1000 3 speed record changer.
See also Philips Model HZ846 with record player.
- Mentioned in
- -- Original prospect or advert (Press 14 June 1954 Page 11)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
