• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336944

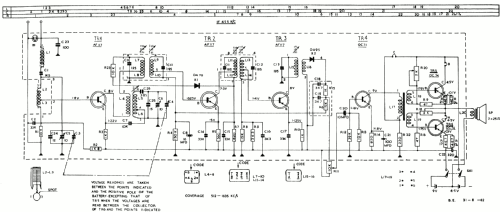

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC71 OC74 OC74 OA79 OA95

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / C: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.35 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Philette B0Z17T - Philips Electrical Industries

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 281 x 188 x 120 mm / 11.1 x 7.4 x 4.7 inch

• Notes

• 6 transistor portable "For Beach, Bach or Boat"

• Price in first year of sale
• 19.50 NZ Pounds

• Mentioned in
• -- Original prospect or advert (Press Volume 101 3 December 1962)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
