• Year
  • 1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 338291

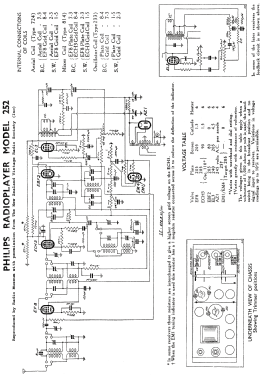

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 472.5 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Ø 8.5 inch = 21.6 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radioplayer 252 - Philips Electrical Industries
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • 6-valve (including magic eye) superhet with RF stage, dual-wave, table receiver.

    Note: Later production receivers used a modified feedback circuit, see schematic.

    "English design made in New Zealand"

  • Price in first year of sale
  • 28.00 GNS
  • Literature/Schematics (1)
  • -- Original prospect or advert (Te Awamutu Courier 20 December 1940 Page 6)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
