• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 344255

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EF41 ECH41 EAF41 EAF41 EL41 AZ41

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org
• Model: Radioplayer 305 - Philips Electrical Industries

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17 x 11.75 x 8 inch / 432 x 298 x 203 mm

• Notes

• 6-Valve superhet with RF stage broadcast (MW) table receiver.

  Terminals for extension speaker and gramophone pickup.

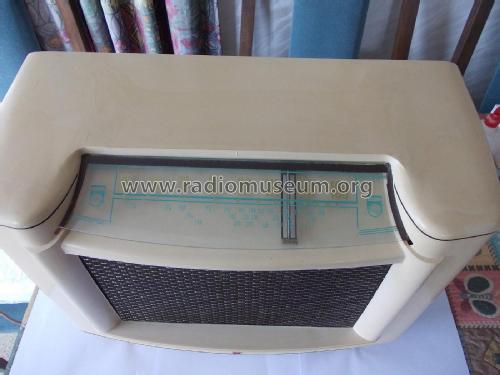

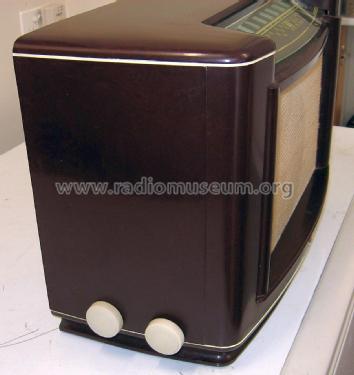

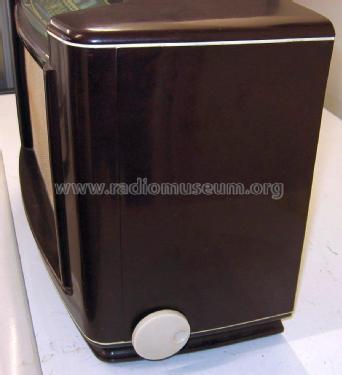

  Available in Brown, Wine or Silky Oak cabinets.

  See also Mullard 649 & Philips 306 DW.

• Mentioned in
• -- Original prospect or advert (Otago Daily Times 30 August 1949 Page 2)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
