• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339710

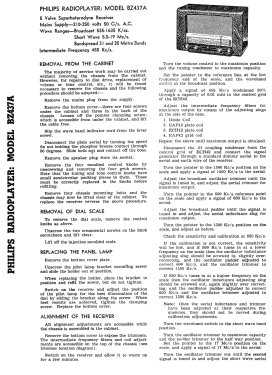

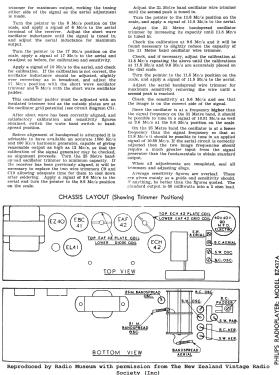

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EZ40

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: Radioplayer BZ437A - Philips Electrical Industries

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18.5 x 12.25 x 8.75 inch / 470 x 311 x 222 mm

• Notes

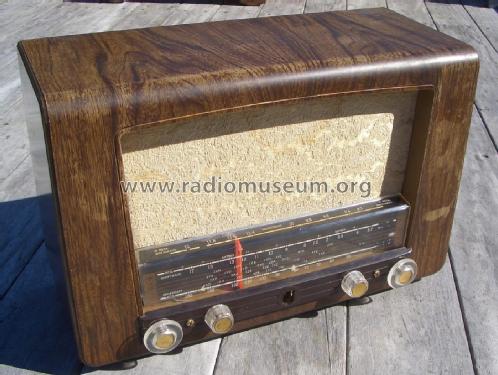

• 5-Valve superhet all wave table model receiver.

  Cabinet made from "Arborlite" plastic with woodgrain finish.

  Gramophone pickup and extension speaker connections.

  See also Mullard Model 511.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
