• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 332934

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC81 UL84 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110-127; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

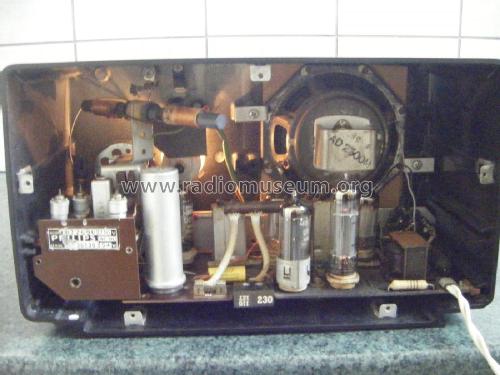

• Model: Riviera B2Z69U - Philips Electrical Industries

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• Waverange: 517 - 1550 kc (kHz) & 4.7 - 18.3 mc (MHz)

  Loudspeaker: AD2500M

  Riviera also known as Silver Printina.

• Price in first year of sale
• 21.00 NZ Guineas

• Literature/Schematics (1)
• -- Original-techn. papers. (Philips Service Notes.)

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
