• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 333607

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH81 EBF80 EBC81 EBC81 EL84 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

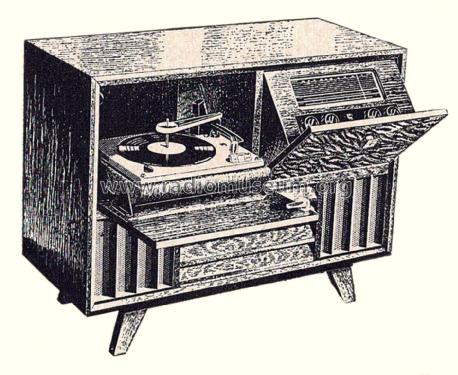

• Model: Stockholm MkII FZ776A - Philips Electrical Industries

• Shape
• Console with any shape - in general

• Notes

• Radiogram with broadcast (535 - 1740 kHz), shortwave (5.5 - 19 MHz) and bandspread (25 & 21 metres).

  Record changer Type AG1003.

  Also released as the Fleetwood Swedish Gram Model 798.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Martin Kent. See "Data change" for further contributors.
