• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Philips Electrical Industries of New Zealand Ltd.; Wellington

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 340417

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• EF89 ECH81 EBF89 EBC81 EM34 EBC81 ECC83 ECC83 EL86 EL86 EL86 EL86 EZ81 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Westminster Hall F8Z96A - Philips Electrical Industries

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 37 x 32 x 16.75 inch / 940 x 813 x 425 mm

• Notes

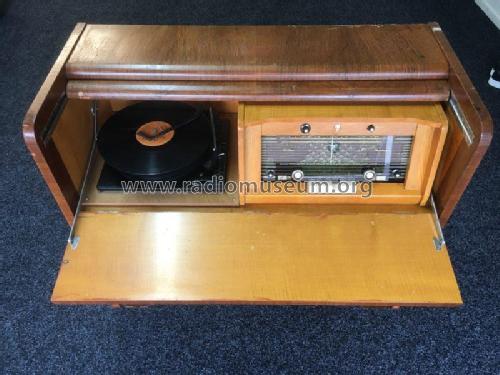

• 14-Valve (including magic eye) superhet 3 band stereo console radiogram.

  4-Speed Touch-O-Matic stereo record changer.

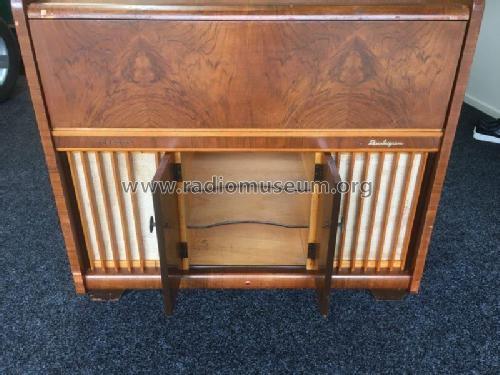

  Glide-O-Matic console cabinet finished in selected Florentine Amber Walnut veneer or Mahogany with Sycamore interior.

  Two 10 inch bass and two 10 inch treble speakers.

• Price in first year of sale
• 189.00 NZ Guineas

• Mentioned in
• -- Original prospect or advert (Press 9 August 1960 Page 5)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
