• Country
• Denmark

• Manufacturer / Brand
• Phönix (Phønix); Danmark

• Year
• 1943 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157867

• Number of Tubes
• 5

• Valves / Tubes
• UCH11 UBF11 UF11 UBL1 UY11

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

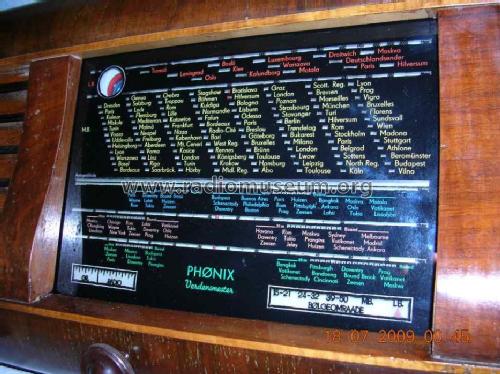

• Model: Verdensmester 43-4½ U - Phönix Phønix; Danmark

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 320 x 330 mm / 23.6 x 12.6 x 13 inch

• Author
• Model page created by Zdzislaw Obstawski. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 13 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
