• Country
• Denmark

• Manufacturer / Brand
• Phönix (Phønix); Danmark

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 291569

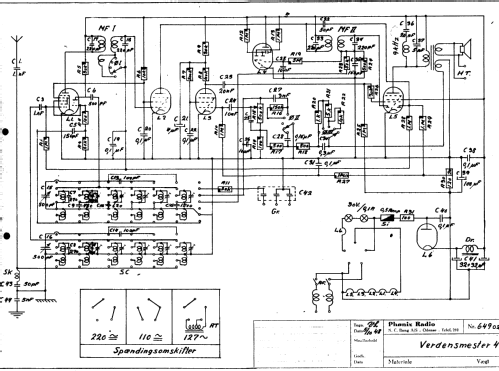

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH21 UF21 UF21 UBL21 UM4 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• AC/DC-set / 220/127/110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Verdensmester 49 - Phönix Phønix; Danmark

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 560 x 410 x 270 mm / 22 x 16.1 x 10.6 inch

• Notes

• The depth is that of the cabinet only. The knobs add an additional 25mm to the total depth.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Author
• Model page created by Egil Hansen. See "Data change" for further contributors.
