• Country
• Germany

• Manufacturer / Brand
• Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona

• Year
• 1983 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 182792

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

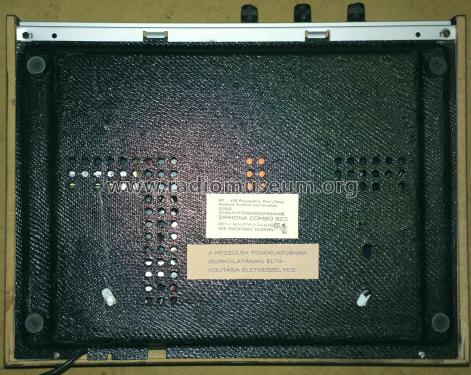

• Model: Combo 823 de Luxe - Phonotechnik Pirna/Zittau; VEB

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 367 x 145 x 280 mm / 14.4 x 5.7 x 11 inch

• Notes
• 33, 45 U/min. Abtastsystem: KS231SD.

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Aus Magazin "Practic 4/83 Seite124

• Author
• Model page created by Egon Strampe. See "Data change" for further contributors.
