• Country
• Germany

• Manufacturer / Brand
• Phonotechnik Pirna/Zittau; VEB; (Ostd.); Marke: Ziphona

• Year
• 1981 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 83614

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

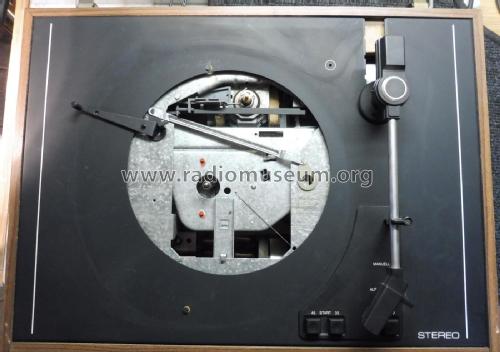

• Model: Rubin 2000 - Phonotechnik Pirna/Zittau; VEB

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 480 x 170 x 350 mm / 18.9 x 6.7 x 13.8 inch

• Notes
• 2 × 6 Watt; 33/45 UpM; Vollautomat; Abtastsystem: KS23. Wurde beim Export unter dem Namen "Bruns" verkauft.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
