- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1964
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 220141
From service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- Number of Transistors
- 2
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

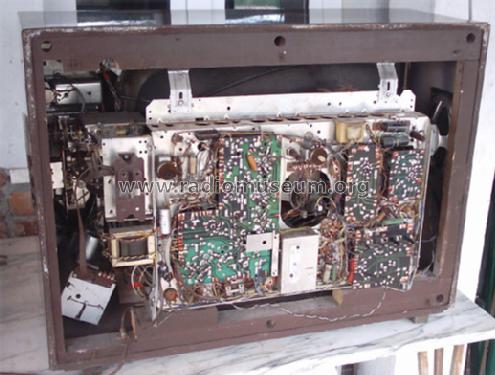

- Model: 2357 - Phonola SA, FIMI; Saronno VA
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Ricevitore a sintonia automatica.
Con 15 valvole, 2 transistor (solo tuner UHF), 7 diodi al silicio, 5 diodi al germanio.
Cinescopio 110° da 23 pollici (A59/11W).
- Literature/Schematics (1)
- Manuale di Servizio Assistenza Tecnica - PHONOLA
- Author
- Model page created by Sergio Giorgi. See "Data change" for further contributors.
