• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30659

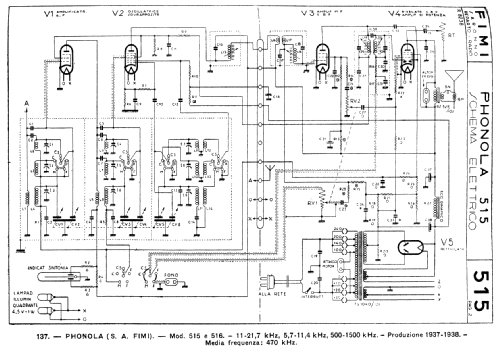

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AF3 or WE33 AK2 or WE32 AF7 or WE34 ABL1 or WE41 AZ1 or WE54 Neon_Indicator

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 515 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Notes

• Serie Radioconverto. Indicatore di sintonia al Neon.
  Controllo di tono. Ingresso Fono.
  Neon meter.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Literature/Schematics (2)
• Il Radio Libro, (Ravalico) 6a edizione 1942

• Literature/Schematics (3)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 716 models, 460 with images and 545 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
