• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 173075

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF9 EBC3 EL3 WE54

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker

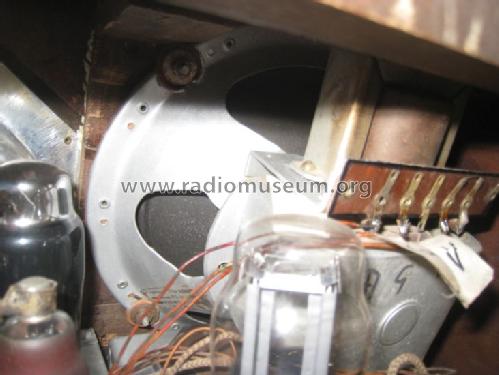

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

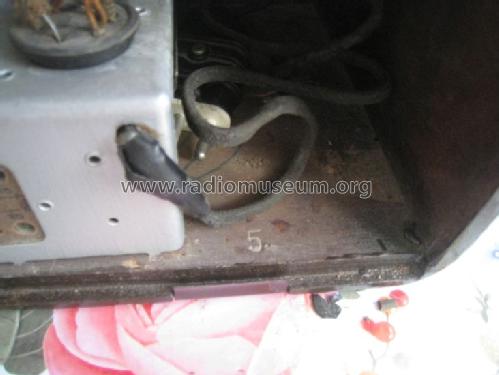

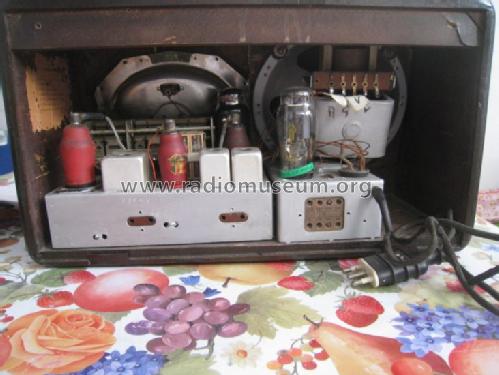

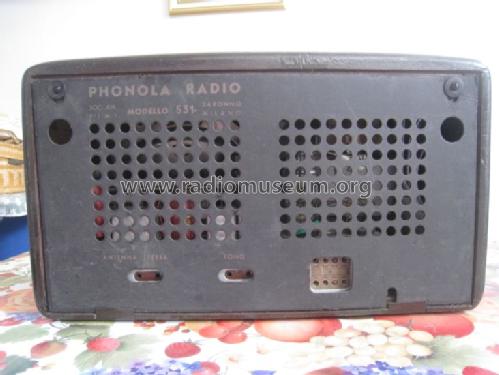

• Model: 531/1 - Phonola SA, FIMI; Saronno VA

• Notes

• Gamme d'onda: corte: (m 16-50); medie: (m 187-600).
  Schematic states the Octode EK2, but a Triode-Hexode (probably an ECH3) is drawn.

  Controllo di tono. Ingresso per giradischi.

• Mentioned in
• -- Schematic (Il Radio Libro D.E. Ravalico, VI edizione - Hoepli – 1942)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
