• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1939–1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85379

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

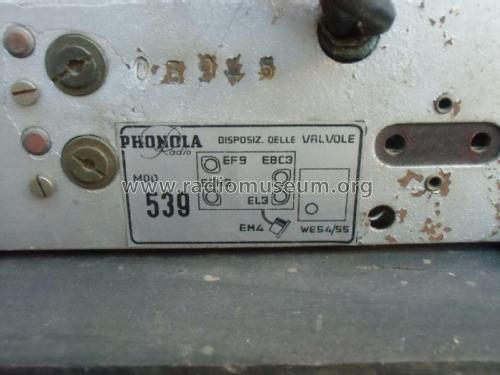

• Valves / Tubes
• ECH3 EF9 EBC3 EL3 EM4 WE54

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 539 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 330 x 250 mm / 23.6 x 13 x 9.8 inch

• Notes

• Indicatore di sintonia (occhio magico) EM4.
  Controllo di tono. Ingresso per giradischi

• Price in first year of sale
• 1,650.00 LIT

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Schematic (Radio Elementi D.E. Ravalico, III edizione – Hoepli – 1956.)

• Author
• Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.
