- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 91457
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Line / Batteries (any type)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

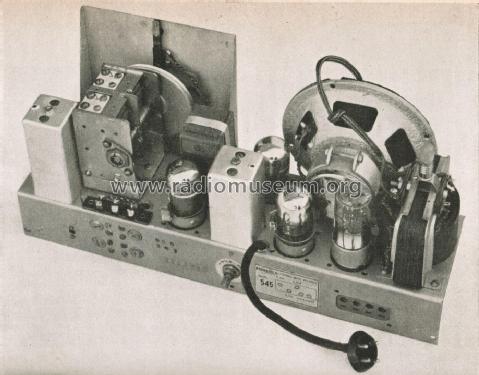

- Model: 545/1 - Phonola SA, FIMI; Saronno VA
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 380 x 280 x 150 mm / 15 x 11 x 5.9 inch
- Notes
-
Questo apparecchio è alimentabile da rete sia in Corrente Alternata, sia in Corrente Continua. In funzionamento portatile viene alimentato da una batteria da 6 V per l'accensione delle valvole e da una batteria anodica da 97,5 V. Dotato di antenna interna e presa per antenna esterna.
- Source of data
- Guida Pratica Antique Radio II (2000)
- Literature/Schematics (1)
- Riparazioni - Scuola Radio Elettra (pag. P6)
- Literature/Schematics (2)
- -- Original-techn. papers. (Il Manuale del Radiomeccanico G. B. Angeletti 1948/49)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 716 models, 460 with images and 545 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
