• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1951 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118063

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

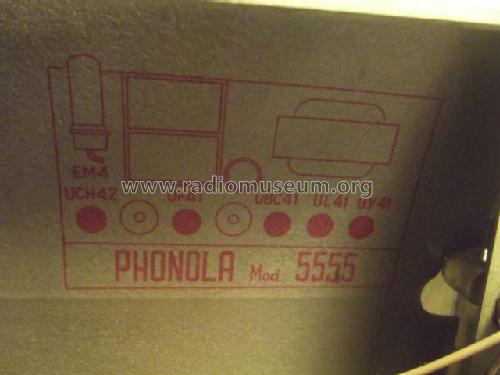

• UCH42 UF41 UBC41 UL41 EM4 UY41

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage

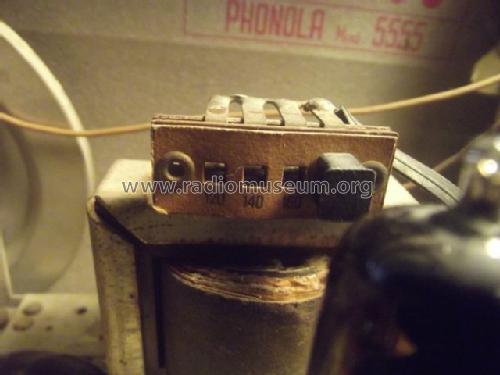

• Alternating Current supply (AC) / 120; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 5555 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 600 x 310 x 240 mm / 23.6 x 12.2 x 9.4 inch

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
