• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106353

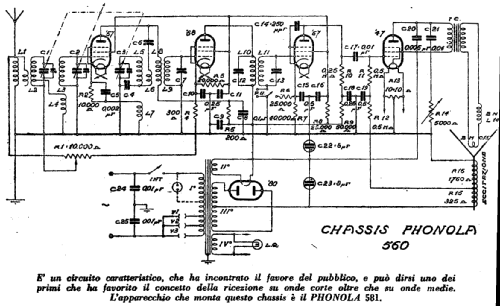

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 57 58 57 47 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 561 Serie d'Oro Ch= 560 - Phonola SA, FIMI; Saronno VA

• Shape

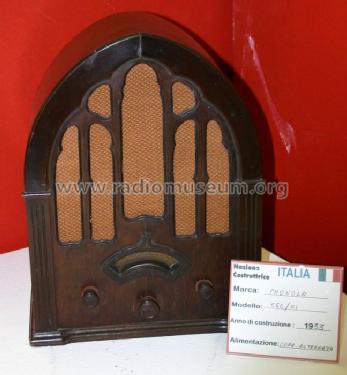

• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 370 x 480 x 230 mm / 14.6 x 18.9 x 9.1 inch

• Price in first year of sale
• 1,400.00 lire

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• Radiocorriere aprile 1933

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
