- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100297
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 120; 140; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

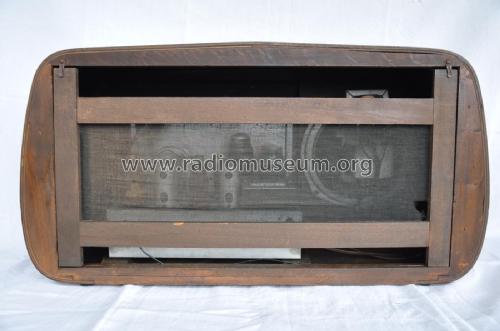

- Model: 595 - Phonola SA, FIMI; Saronno VA
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 340 x 250 mm / 25.6 x 13.4 x 9.8 inch
- Notes
-
2 gamme di onde Medie: 187,5 - 241 e 230 - 570 metri. 6 gamme allargate di onde Corte: 16 -19 - 25 - 31 - 40 - 50 metri
Wave bands: 2× BC, 6× SW.
- Literature/Schematics (1)
- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 229-230)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 716 models, 458 with images and 545 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
Collections
The model is part of the collections of the following members.
Forum contributions about this model: Phonola SA, FIMI;: 595
Threads: 1 | Posts: 2
Valvole installate:
EL3 WE54 EBC3 EF9 ECH4
Denis Cernigoj, 20.Dec.07
