• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1948 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 100292

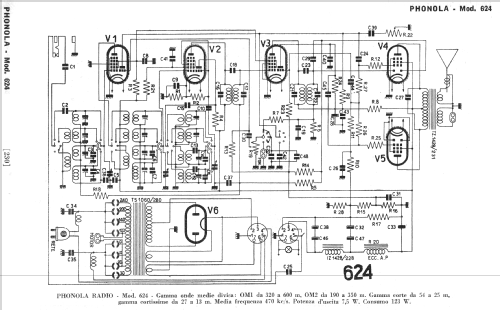

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH4 ECH4 ECH4 EBL1 EBL1 AZ2 or WE53

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 32 cm = 12.6 inch

• Power out
• 7.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 624 - Phonola SA, FIMI; Saronno VA

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 850 x 830 x 450 mm / 33.5 x 32.7 x 17.7 inch

• Notes
• Gamme d'onda: 2 medie, corte, cortissime.
  Wave bands: 2× BC, 2× SW. Riproduttore fonografico Lesa a 78 rpm- Particolare scala parlante inclinata inserita in inserto in radica di noce- Cambio gamme d'onda sporgente dal lato destro del mobile con lungo asse di comando e manopola con 5 posizioni.

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 230-231)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
