• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 205461

• Number of Tubes
• 7

• Valves / Tubes

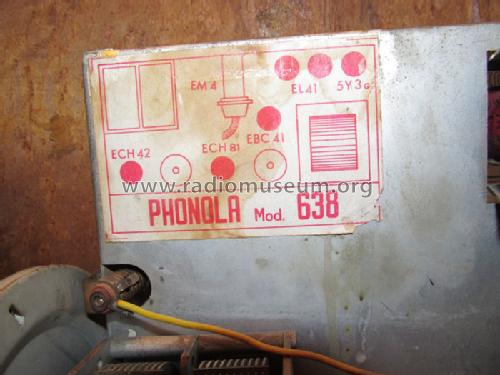

• ECH42 ECH81 EBC41 EL41 EM4 EL41 5Y3

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 24 cm = 9.4 inch

• Power out
• 9 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 638 - Phonola SA, FIMI; Saronno VA

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 1030 x 830 x 430 mm / 40.6 x 32.7 x 16.9 inch

• Notes
• Mobile bar provvisto di vano porta bottiglie/bicchieri.

• Net weight (2.2 lb = 1 kg)
• 41 kg / 90 lb 4.9 oz (90.308 lb)

• Author
• Model page created by Giovanni Scalavino. See "Data change" for further contributors.

• Other Models

• Here you find 716 models, 460 with images and 545 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
