• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 139706

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details

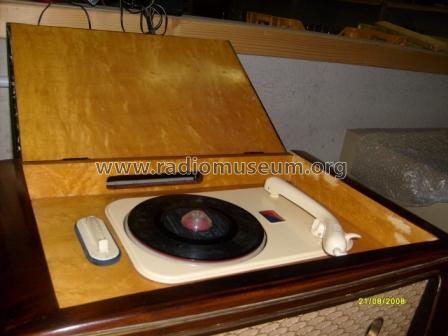

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 656 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 380 x 370 mm / 22 x 15 x 14.6 inch

• Notes

• 3 altoparlanti ellittici.

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• -- Schematic (D.E. Ravalico, “Il Radio Libro XVII edizione, U. Hoepli 1960.)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 716 models, 460 with images and 545 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
