661 (Ch= 660) Serie Transoceanico

• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98802

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 2A7 58 2A6 47 80

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 42-60 Hz: 120; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

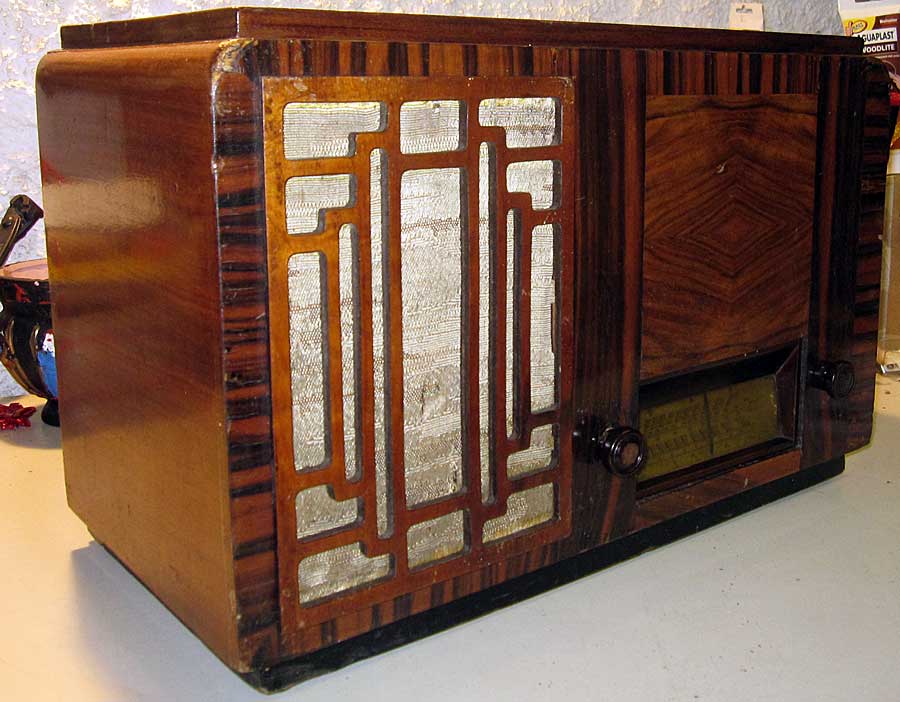

• Model: 661 Serie Transoceanico - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Notes
• Serie Transoceanica.

• Price in first year of sale
• 900.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• L'antenna, n.10, ottobre 1934

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
