- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 116219
Radiofonografi Phonola - Serie 1959
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 676 - Phonola SA, FIMI; Saronno VA
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 405 x 290 x 310 mm / 15.9 x 11.4 x 12.2 inch
- Price in first year of sale
- 63,000.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- -- Original prospect or advert (Radiofonografi Phonola - Serie 1959)

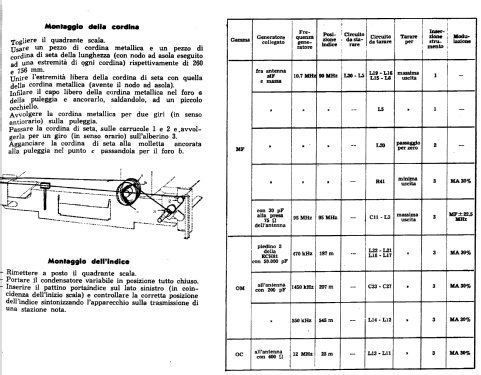

- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
