- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100406
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 100-270 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Power out
- 11 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 724 - Phonola SA, FIMI; Saronno VA
- Shape
- Console with any shape - in general
- Notes
-
Gamme d'onda: 2x OM, corte, cortissime.
Wave bands: 2x BC, 2x SW.La rete elettrica viene usata come antenna, collegata tramite un condensatore di isolamento. Controllo di tono all'ingresso dello stadio finale.
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Literature/Schematics (1)

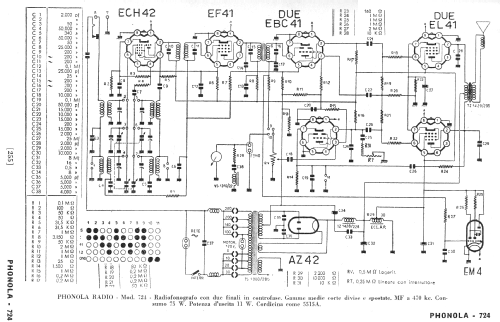

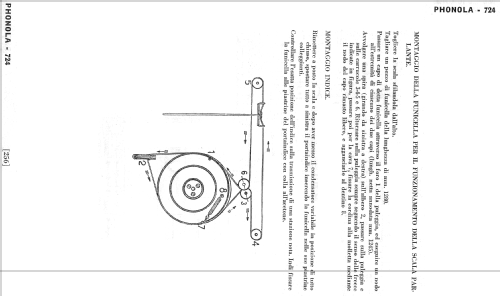

- Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 255-256)
- Literature/Schematics (2)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (12a edizione, 1953)
