- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1943 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127394
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 32 cm = 12.6 inch
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

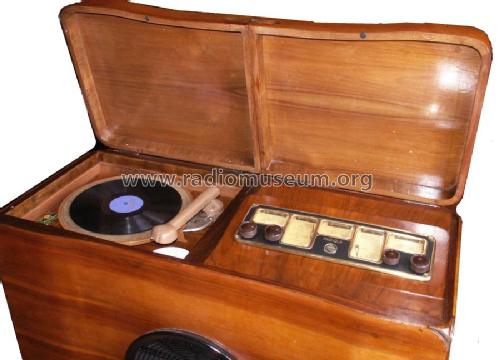

- Model: 814 - Phonola SA, FIMI; Saronno VA
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 940 x 850 x 410 mm / 37 x 33.5 x 16.1 inch
- Notes
-
Serie "Motorizzata". Quattro gamme d'onda:
OL: 1000 - 2000 m
OM: 195 - 588 m
OC1: 26,30 - 53,5 m
OC2: 13,65 - 26,8 mAssorbimento: 120 Watt.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.
- Author
- Model page created by Marco Gilardetti. See "Data change" for further contributors.
