- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 115918

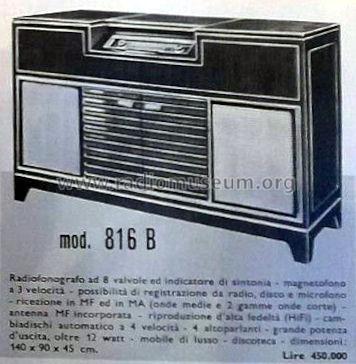

From "Radio e Televisione"
Radiofonografi Phonola - Serie 1959
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Changer + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

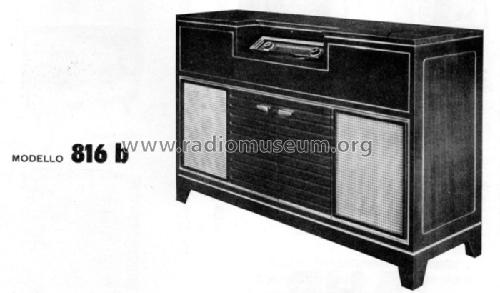

- Model: 816B - Phonola SA, FIMI; Saronno VA
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 1400 x 900 x 450 mm / 55.1 x 35.4 x 17.7 inch
- Price in first year of sale
- 450,000.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- -- Original prospect or advert (Radiofonografi Phonola - Serie 1959)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
