- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 116213
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details

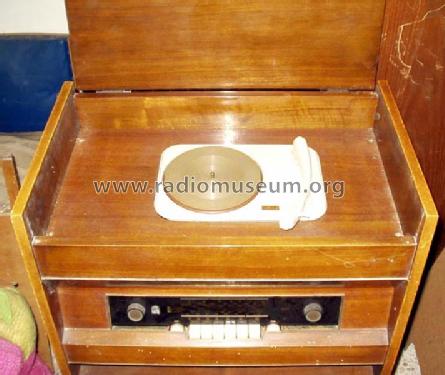

- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-250 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 12 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 818 - Phonola SA, FIMI; Saronno VA
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 650 x 870 x 420 mm / 25.6 x 34.3 x 16.5 inch
- Notes
- 4 altoparlanti magnetodinamici ellittici.
- Net weight (2.2 lb = 1 kg)
- 40 kg / 88 lb 1.7 oz (88.106 lb)
- Price in first year of sale
- 127,500.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- -- Original prospect or advert (Radiofonografi Phonola - Serie 1959)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
