• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1938/1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30679

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• AF3 AK2 AF3 AF3 ABC1 AL5 AZ2

• Main principle
• Superhet with RF-stage; ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: 960 - Phonola SA, FIMI; Saronno VA

• Notes

• Indicatore di sintonia al Neon. Controllo di selettività variabile. Differisce dal modello 880 (di cui utilizza la Media Frequenza), per i circuiti di Alta Frequenza e Bassa Frequenza - alimentazione.
  Controllo di tono. Ingresso per giradischi. Presa per altoparlante supplementare derivata dal primario del trasformatore di uscita.
  Neon meter.



• Source of data
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli

• Mentioned in

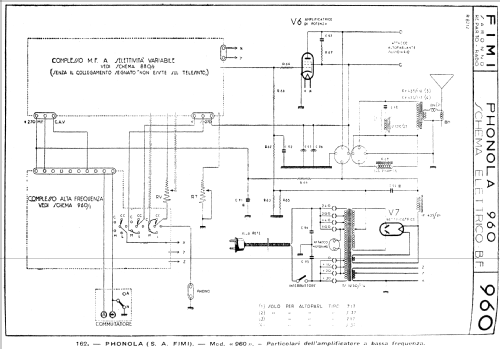

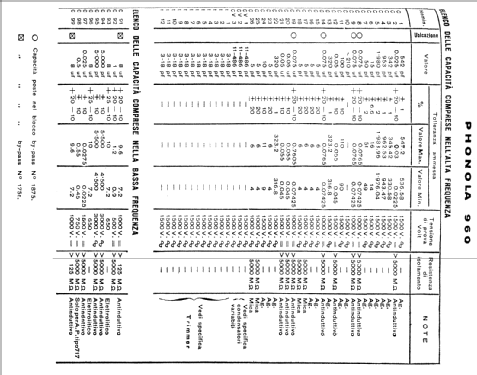

• -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
