• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 211916

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF170 AF172 AF172 AC134 AC138 AC142 or. AC130 AC141 AA121 AA121 10207

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

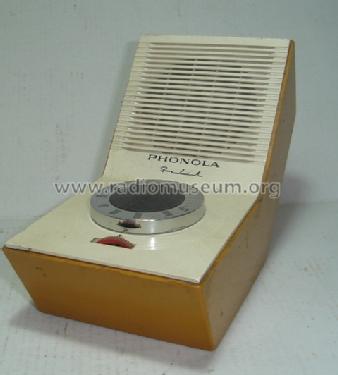

• Model: Bilik RT7180 - Phonola SA, FIMI; Saronno VA

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 158 x 115 x 50 mm / 6.2 x 4.5 x 2 inch

• Notes

• Piccolo apparecchio a transistor, di forma molto particolare a V, poteva esere posizionato in vari modi. Veniva costruito in diverse varianti di colore. Monta 7 transistor più 3 diodi

  Il 10207 è un transistor che di solito, come in questo caso viene usato e collegato come un diodo.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 12,000.00 ITL

• Source of data
• - - Data from my own collection

• Mentioned in
• Catalogo ANIE (1970-71)

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Antonio Maida. See "Data change" for further contributors.
