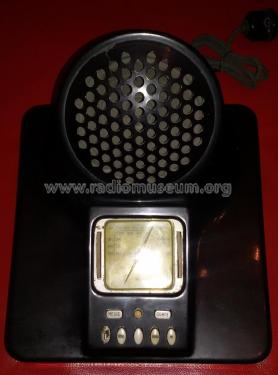

"Castiglioni" 547

• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1939–1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73123

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH3 EF9 12Q7 6V6 35Z4GT

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 120-220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: "Castiglioni" 547 - Phonola SA, FIMI; Saronno VA

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Notes

• Oggetto di design del Ventesimo secolo. Diversi colori. Design Castiglioni.
  Preselezione a tasti di 4 emittenti. Il quinto tasto permette la normale sintonia continua.

  Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.



• Price in first year of sale
• 1,200.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• Il Radio Libro, (Ravalico) 6a edizione 1942

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 716 models, 460 with images and 545 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Phonola SA, FIMI; Saronno (VA)
