• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241865

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF194 BF195 BF194 BC149 BF195 BF195 AC128 BC149 AC127 AC128 unknown_tr BZY88 AA119 AA119 AA119 AA119 M30C350

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 125; 160; 220 / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

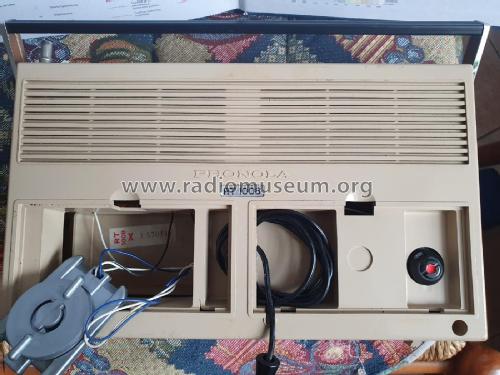

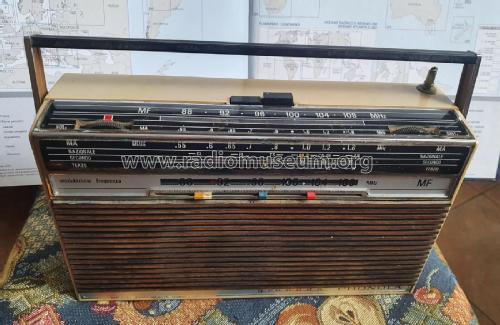

• Model: Granada RT1008 - Phonola SA, FIMI; Saronno VA

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 175 x 80 mm / 11 x 6.9 x 3.1 inch

• Notes

• Commutatore di gamma a tastiera.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 36,500.00 ITL

• Mentioned in
• Catalogo ANIE (1970-71)

• Literature/Schematics (1)
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" marzo 1971.)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
