• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110589

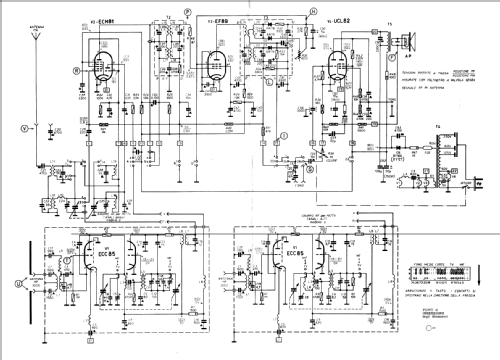

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EF89 UCL82

• Number of Transistors
• 1

• Semiconductors
• AA119 Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

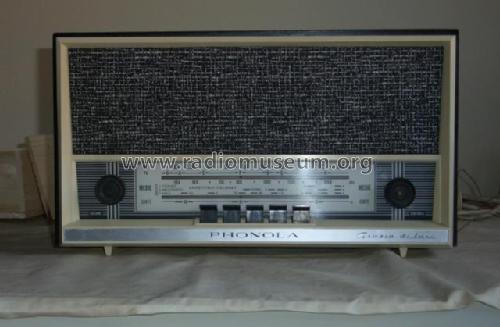

• Model: Grazia de Luxe RV6355 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 352 x 197 x 150 mm / 13.9 x 7.8 x 5.9 inch

• Notes

• Mobile in legno e plastica. Gamme d'onda: medie, corte, FM, TV. 3 diodi al germanio e un raddrizzatore al silicio.
  Mueble de madera y plástico. Gama de ondas incluye también TV. 1 diodo BY514S

  Il modello RV6355/a riceve canali TV D, E, F, G, H

  Il modello RV6355/b riceve canali TV A, B

  Con presa FONO.

• Source of data
• - - Data from my own collection

• Mentioned in
• Guida Pratica Antique Radio V

• Literature/Schematics (1)
• Manuale di Servizio Assistenza Tecnica - PHONOLA

• Author
• Model page created by Leon Ouziel Canals. See "Data change" for further contributors.
