• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1956–1961 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 228621

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC81 EC92 ECH81 EBF80 EABC80 ECC85 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 2.5 W (4 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Becker Brescia 731 - Phonola SA, FIMI; Saronno VA

• Shape
• Chassis only or for «building in»

• Notes

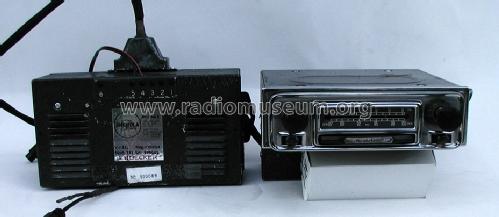

• Autoradio a sintonia elettronica per autovetture Mercedes prodotto su licenza Becker dal 1958 a circa il 1961 per il mercato italiano. 6 valvole + 1 per l'adattatore onde corte opzionale. Attualmente il modello in foto ha scala non originale con FM (UKW) di una Becker Mexico del periodo.

• Source of data
• -- Original prospect or advert

• Mentioned in

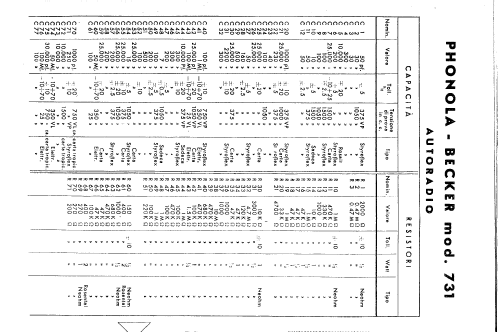

• -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

• Literature/Schematics (1)
• -- Schematic (L'antenna, n.10, ottobre 1956)

• Author
• Model page created by Mauro Emilio Gino Bellini. See "Data change" for further contributors.
