• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108859

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF9 ECH3 EF9 EBC3 EL3 EL3 AZ1 Neon_Indicator

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

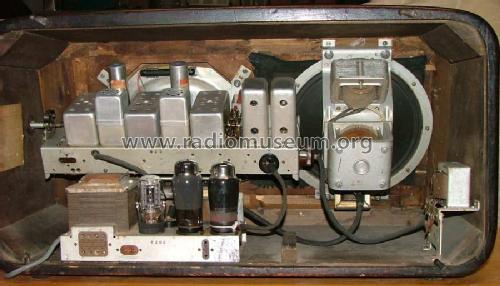

• Model: 717 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 730 x 370 x 350 mm / 28.7 x 14.6 x 13.8 inch

• Notes

• Indicatore di sintonia al Neon. Controllo di tono. Ingresso Fono.
  Antenna fittizia realizzata con il collegamento della rete elettrica di alimentazione alla presa di antenna dell'apparecchio tramite un condensatore di isolamento. Inserendo l’antenna esterna il collegamento viene disattivato.

  Preselezione a tasti di 8 emittenti.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• -- Schematic

• Literature/Schematics (2)
• Il Radio Libro, (Ravalico) 6a edizione 1942

• Literature/Schematics (3)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
