• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1964 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119015

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCC85 UCH81 UF89 UABC80 UL84

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

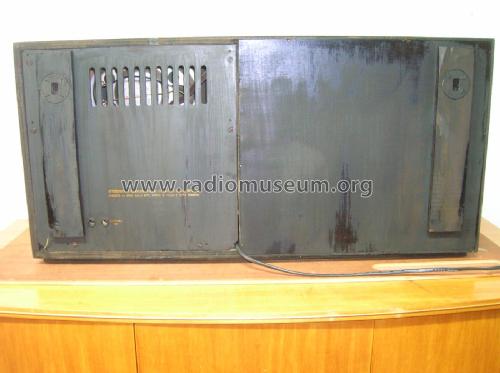

• Model: Svezia RFV6556 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 650 x 321 x 188 mm / 25.6 x 12.6 x 7.4 inch

• Notes

• Riceve anche audio-TV. Fonetto da parete e soprammobile.Complesso fono in cassetto ribaltabile.

  Il modello 6556/a riceve anche canali TV D, E, F, G, H

  Il modello 6556/b riceve anche canali TV A, B

  Antenne AM FM incorporate.

• Price in first year of sale
• 62,900.00 ITL

• Mentioned in
• -- Collector info (Sammler) (Catalogo ANIE 1965-66)

• Literature/Schematics (1)
• Manuale di Servizio Assistenza Tecnica - PHONOLA

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
