• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1978 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192817

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

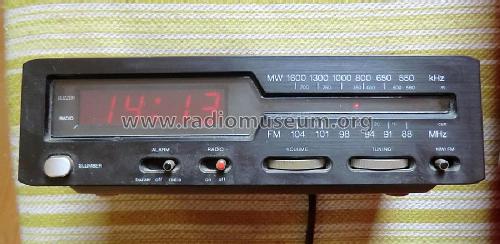

• Model: SX7180 /38 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 210 x 65 x 145 mm / 8.3 x 2.6 x 5.7 inch

• Notes

• Digital display of time, analogue frequency with red LED on the tuning mechanism.
  The device looks identical to Hornyphon SX7180/30 and Philips Clock Radio 7180.

  Made by Philips Hong Kong

• Net weight (2.2 lb = 1 kg)
• 0.990 kg / 2 lb 2.9 oz (2.181 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Felice Nicolini. See "Data change" for further contributors.
