606 Telesinto 1020
Phonola SA, FIMI; Saronno (VA)
- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30687
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 470 kHz; Reflex
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer); Visual Tuning Indicator pre Eye
- Power type and voltage
- Alternating Current supply (AC) / 100-270 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 606 Telesinto 1020 - Phonola SA, FIMI; Saronno VA
- Shape
- Console: Chairside Radio.
- Notes
-
Serie Radioconverto.

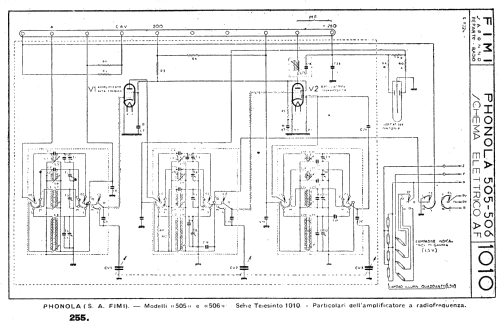

Circuito AF della serie Telesinto 1010 utilizzata dai modelli 505/506.
Indicatore di sintonia al Neon.Neon meter. WE34 tube could replace AF7, and WE33 may replace AF3
- Source of data
- Guida Pratica Antique Radio IV (2001)
- Literature/Schematics (1)
- Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
- Literature/Schematics (2)
- -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
