Televisore portatile TT1787
Phonola SA, FIMI; Saronno (VA)
- Country
- Italy
- Manufacturer / Brand
- Phonola SA, FIMI; Saronno (VA)
- Year
- 1969 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 165631
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- RT44B4
- Number of Transistors
- 33
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 38900/5500 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 125; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Televisore portatile TT1787 - Phonola SA, FIMI; Saronno VA
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 542 x 405 x 320 mm / 21.3 x 15.9 x 12.6 inch
- Notes
- Televisore completamente a transistori
Cinescopio Special Panoramic da 17 pollici a schermo allargato rettangolare tipo autoprotetto.Deflessione 114°
UHF: gamma 470 ÷ 860 MHz
VHF. gamma 52 ÷ 230 MHz
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)

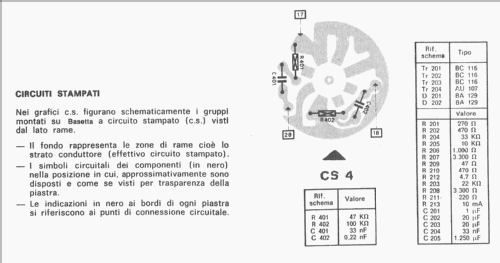

- Literature/Schematics (1)
- Schematic
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
