• Country
• Italy

• Manufacturer / Brand
• Phonola SA, FIMI; Saronno (VA)

• Year
• 1954 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 170320

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• EF80 EF80 ECC81 EF80 EF80 EF80 EB41 PL83 ECL80 EF80 EF80 EB41 ECL80 ECH42 ECL80 ECL80 PL81 PY82 PY82 PY80 EY51 MW36-24

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 100-270 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: TV-1401 - Phonola SA, FIMI; Saronno VA

• Shape
• Tablemodel, with any shape - general.

• Notes
• Cinescopio 14" 70° tipo sferico-magnetico.
  VHF (S1) 5 canali.
  FI 4 stadi 20 MHz sistema monocanale.
  Comandi frontali,altoparlante frontale.

• Mentioned in
• Video Libro 1ª Ed. 1954

• Literature/Schematics (1)

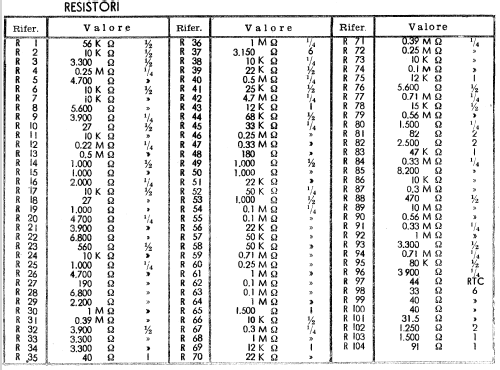

• -- Schematic (Schemario dei Televisori Phonola 1952 al 1964)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
